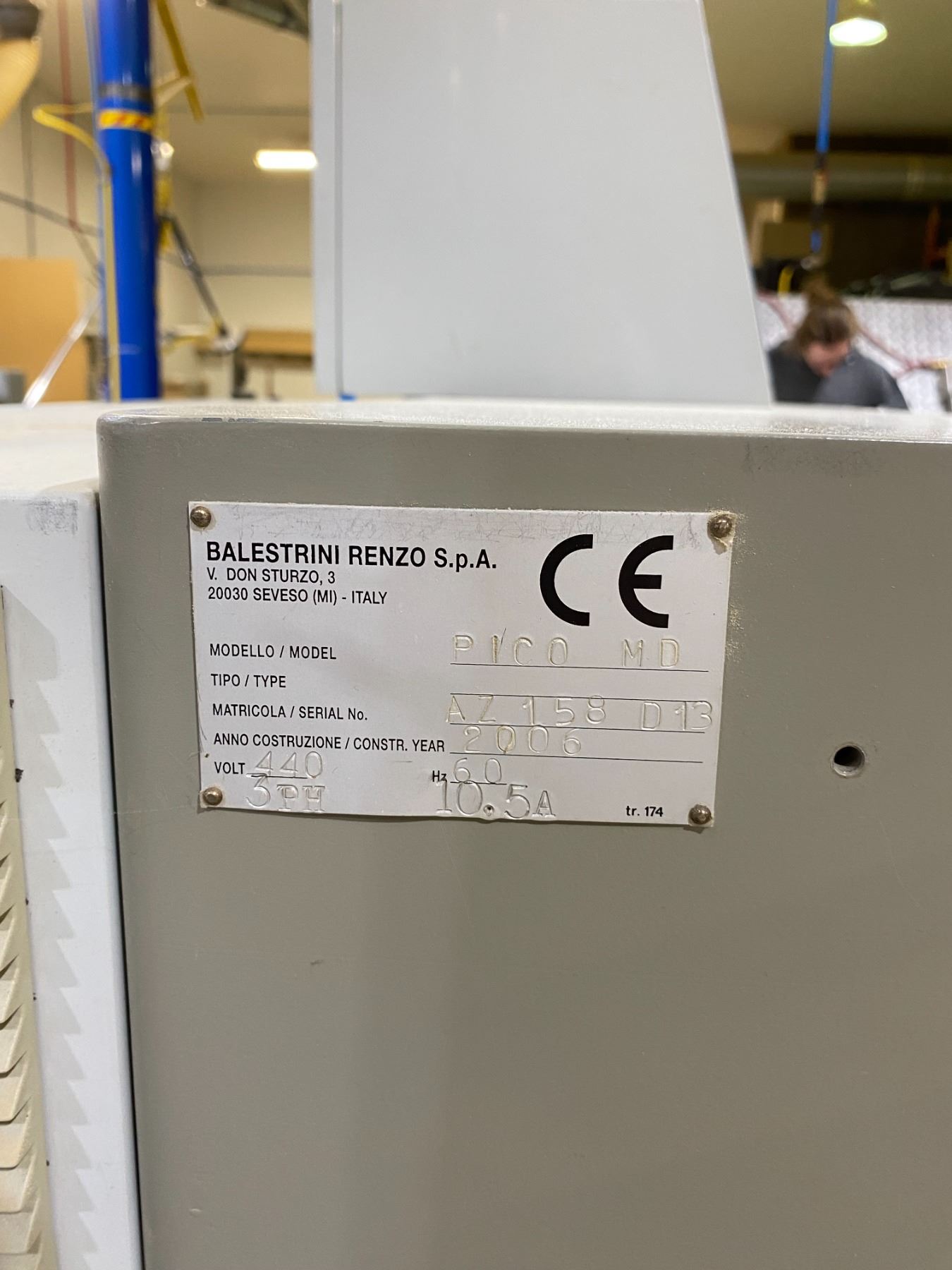

BALESTRINI PICO MD CNC Round End Tenoner/Mortiser / Tenonneuse Mortaiseuse 2006 480v /60/3 avec mane

Currency:CAD Category:Business & Industrial Start Price:37,000.00 CAD
BALESTRINI PICO MD CNC Round End Tenoner/Mortiser / Tenonneuse Mortaiseuse 2006 480v /60/3 avec mane
Auction of tooling and machines from surplus of STCG inc / Encan d'Outils et Machines des Surplus de STCG inc.
For more information contact / pour plus d'information contactez : Gilles Gauthier 450-430-9598
St-Janvier, Mirabel (Quebec)
Free Loading but shipping at cost/ Emballage et chargement gratuit mais transports ou livraison au coutant. Broker at cost if necessary.

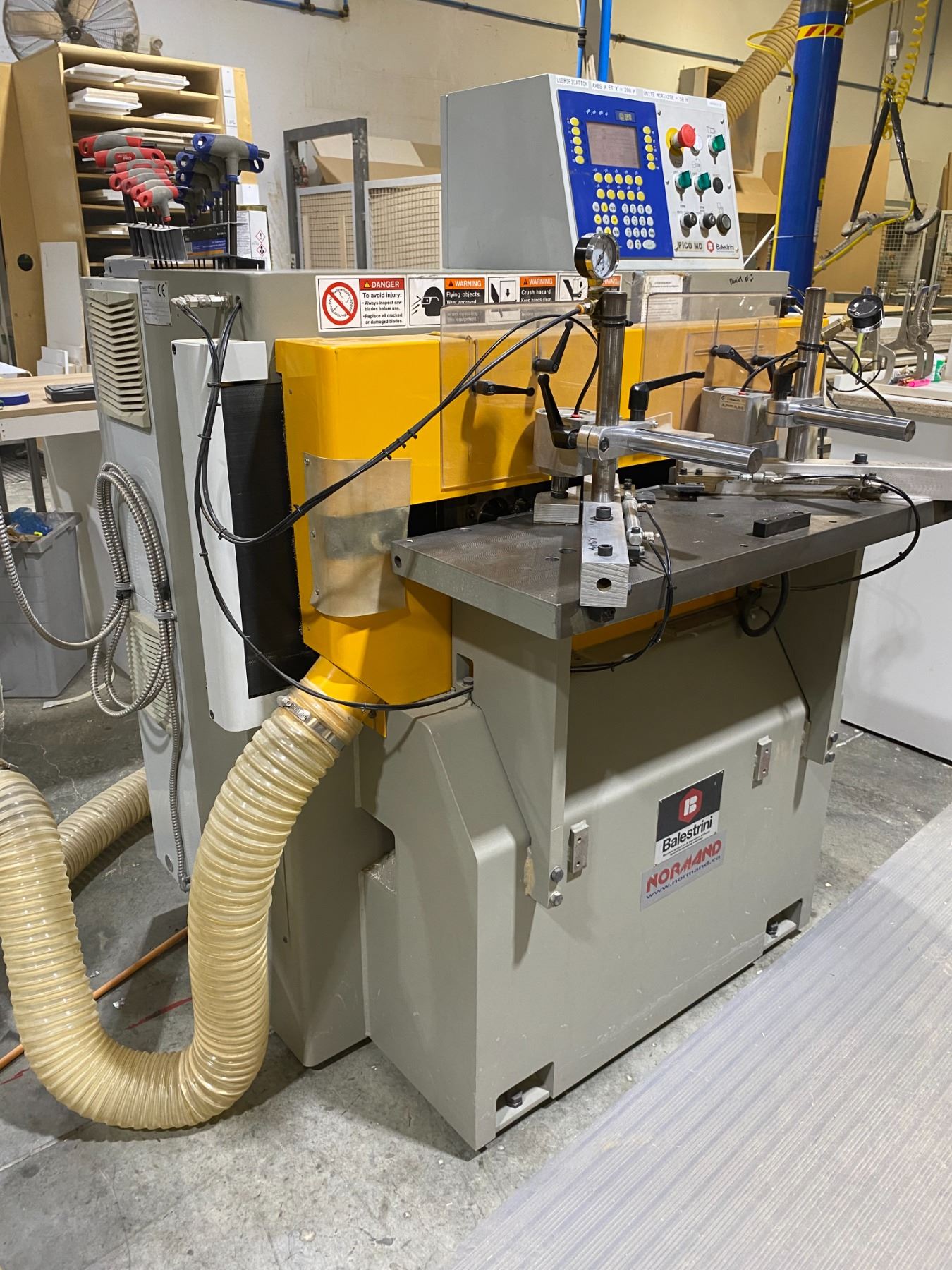

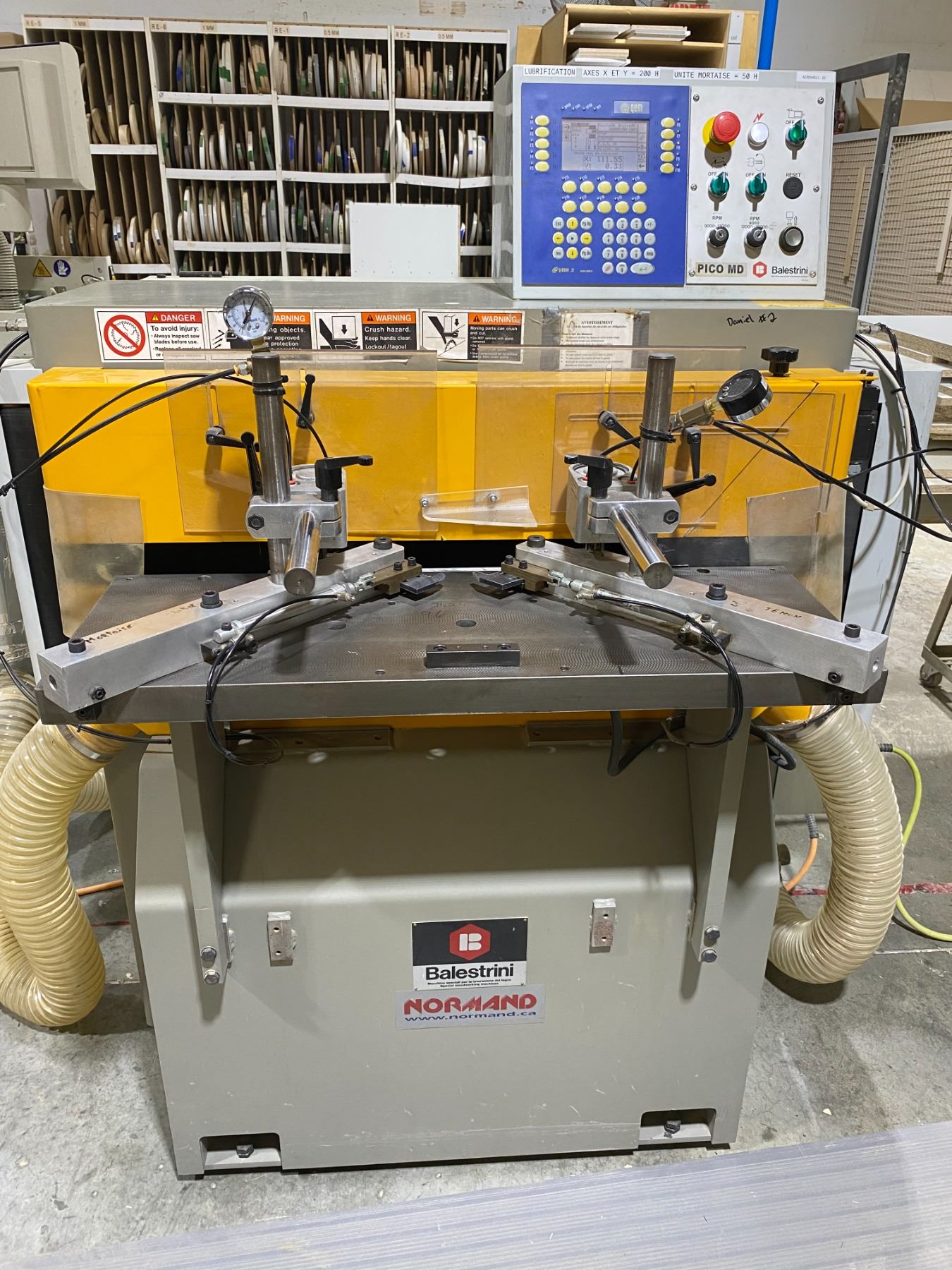

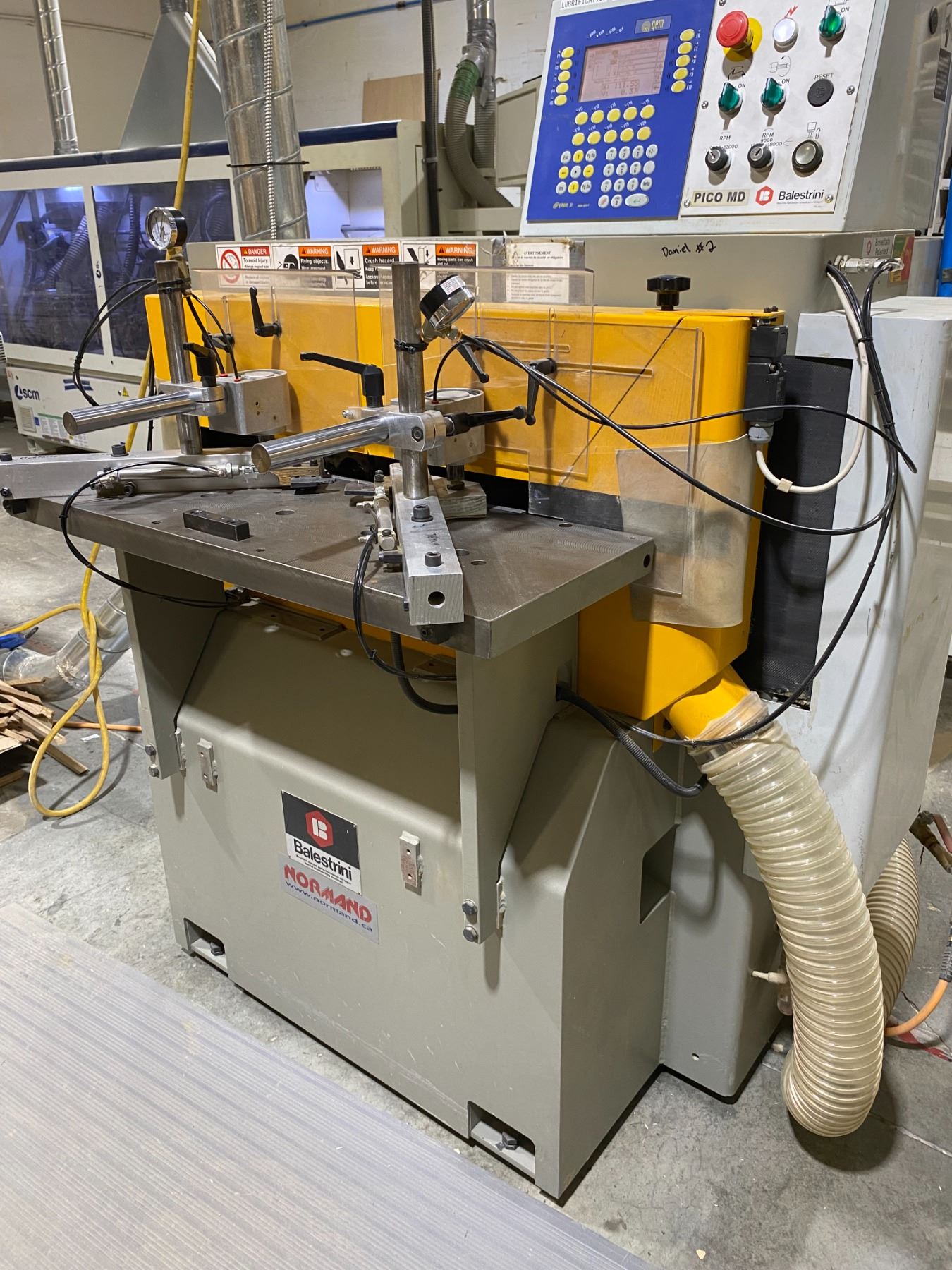

Great compact CNC for MITERED cabinet door and furniture parts; equipped with a tenoning block and a slot mortiser, and scribing function to achieve a chip free cut.
Technical Specifications:
Max. depth of mortise/tenon 50 mm (1.97″);÷Max. thickness of mortise/tenon 38 mm (1.5″)
Max. frame width 120 mm (4.72″);÷Max. thickness 40 mm (1.57″).
Tenon/Cut-off motor 4.1 KW (5.5 HP); motor speeds 9,000 & 12,000 RPM.
Mortising motor 2 KW (2.7 HP); motor speeds 9,000/12,000 &18,000 RPM.

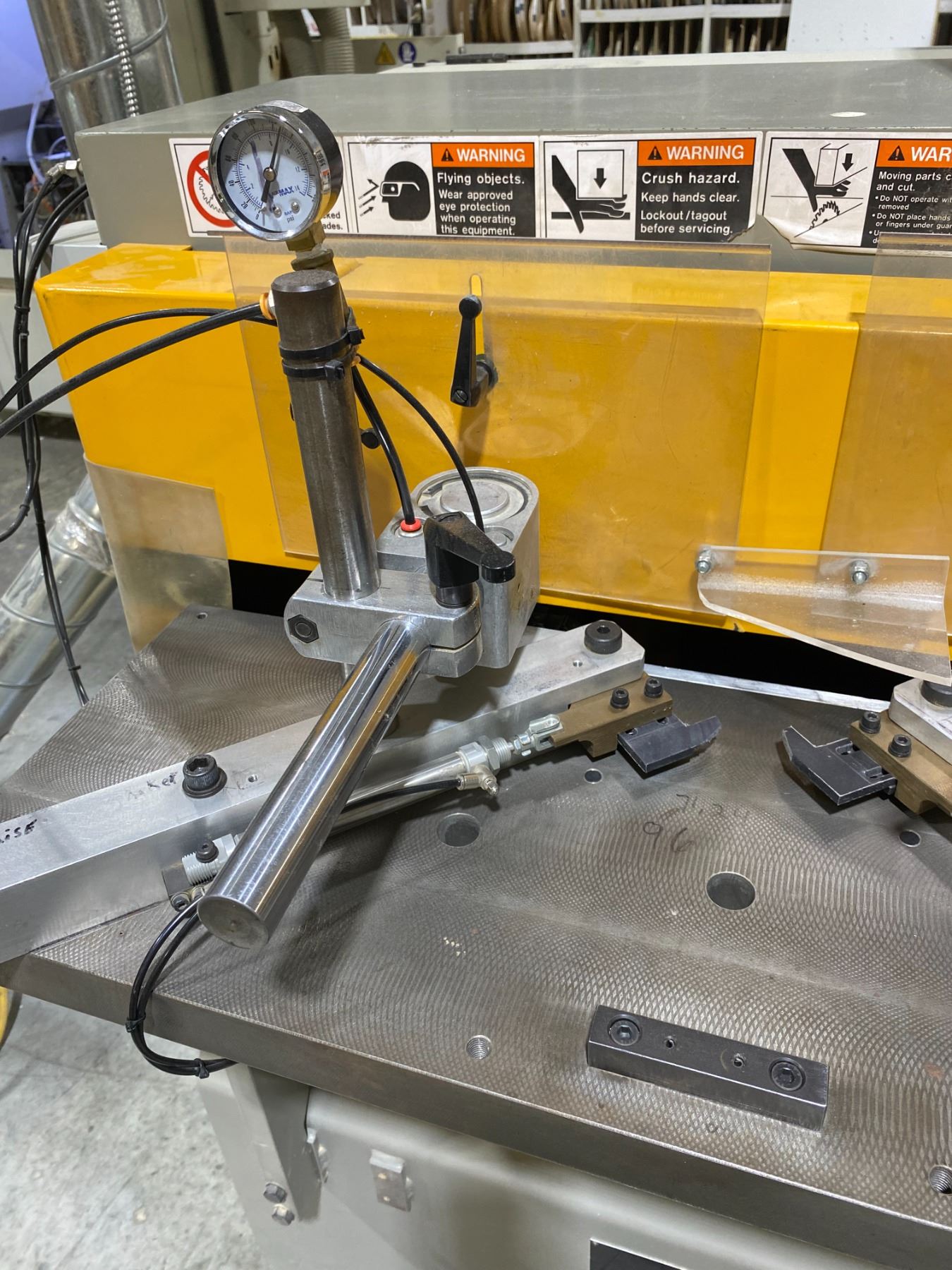

(2) Adjustable pneumatic lateral clamps;
(2) Dust collection points for 100 mm (4. “) pipe.
Separate floor standing control cabinet. Front mounted start/stop controls.
Touch screen controller with 40 Gb hard disk storage; Simple programming with pre-installed macro’s; Offset function allows easy reset of programming to obtain a tighter or looser fit tolerance as needed.
